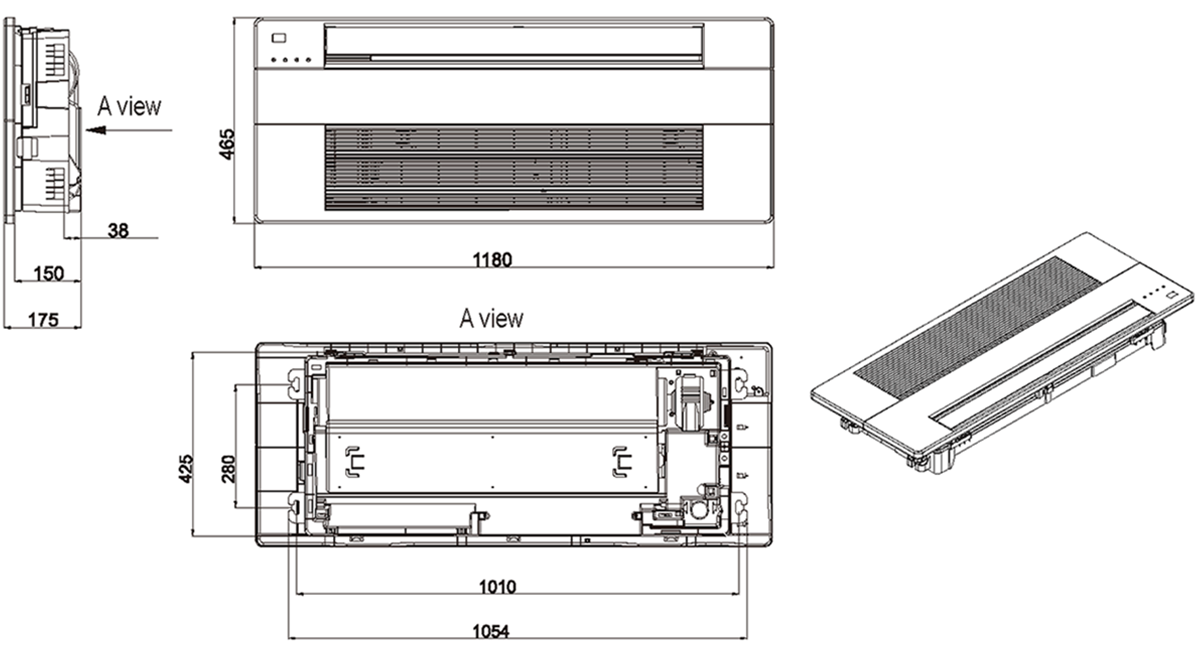

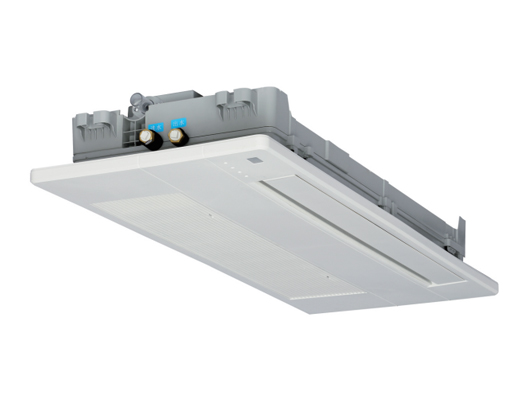

1-way slim type casstte units, the height of the body is only 150mm, which is suitable for some very limited
space and narrow space. It's panel and body are made by ABS, high production efficiency, exact dimension and good consistency.

Unit Body
Aesthetic design, in ABS material and very slim, suitable for some limited space and narrow space.

Panel Assembly
Aesthetic panel design, in ABS material with synthetic washable and removal air filter, auto-swing.

Blower with motor
Cross flow blower with 3 speed motor.

High Efficiency Coil
Coil are made of copper tubes and high exchange surface area aluminum blue fins. All coils are 100% tested against leaks by 16bar,1.6Mpa air pressure. with 1/2”pipe connections and air bleed vent.

Condensate Drain Pan
The drain pan is produced by ABS material via injection forming, with high polystyrene insulation outside.

Drain pump and Float Switch
700mm head drain pump with no return valve is installed in the unit; an float switch inside as well to prevent from leaking . If the water raising to a certainly position, the float switch will act and alarm, then the unit will cut off the water valve or stop the fan motor.
