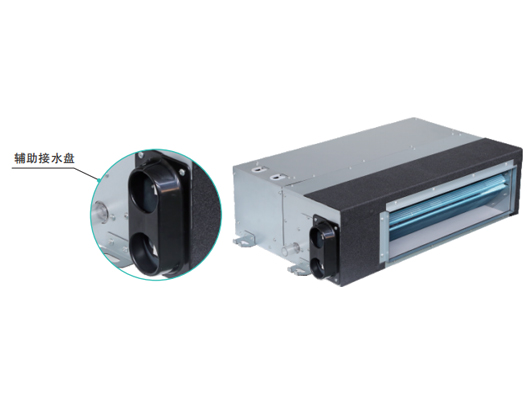

Ultra-thin, ceiling concealed type FCUs, suitable for hot/chilled water system

Centrifugal Fan
Well-known brand centrifugal fan with statically and dynamically balanced.

High Efficiency Coil
Coil are made of copper tubes and high exchange surface area aluminum blue fins.All coils are 100% tested against leaks by 16bar,1.6Mpa air pressure.

Drain Pan
Steel drain pan with powder coating for easy cleaning and corrosion resistance, anti-rust. The drain pan is insulated to prevent condensation water.

Drian pump
700mm head drain pump with no return valve is installed in the unit; an float switch inside as well to prevent from leaking.
